Stage 3 RS4 240mm Clutch Conversion Kit – VW/Audi 1.8T B5 & B6 A4 / B5 Passat

This Kit provides you with everything you need to upgrade your B5 & B5 1.8T Clutch from a 228mm disc to a 240mm disc with a lightened flywheel to improve throttle response and handle increased power up to 330ft/lbs. The?flywheel is machined in-house at 034Motorsport from billet aluminum and engineered to be a direct high-performance replacement for the failure-prone dual-mass factory unit. Includes replaceable steel friction surface and steel ring gear.? ?

The FX300 System uses the Power Plus I Pressure Plate with the Steel Back Segmented Kevlar disc. This clutch is designed for the ultimate street enthusiast or weekend racer running a normally aspirated car equipped with cylinder head work and/or hotter cam(s). or with medium-boost turbo or super-charger. or up to 100hp NO2. The FX300 features only slightly increased pedal pressure (overstock components). long life disc and smooth engagement.
??

Features

– Heavy-duty street & racing system
– Holding capacity 110% over stock
– Heavy-Duty reinforced pressure plate
– Hi-Leverage pressure ring design
– Sprung hub/cushioned disc
– Steel backed Segmented Carbon/Kevlar

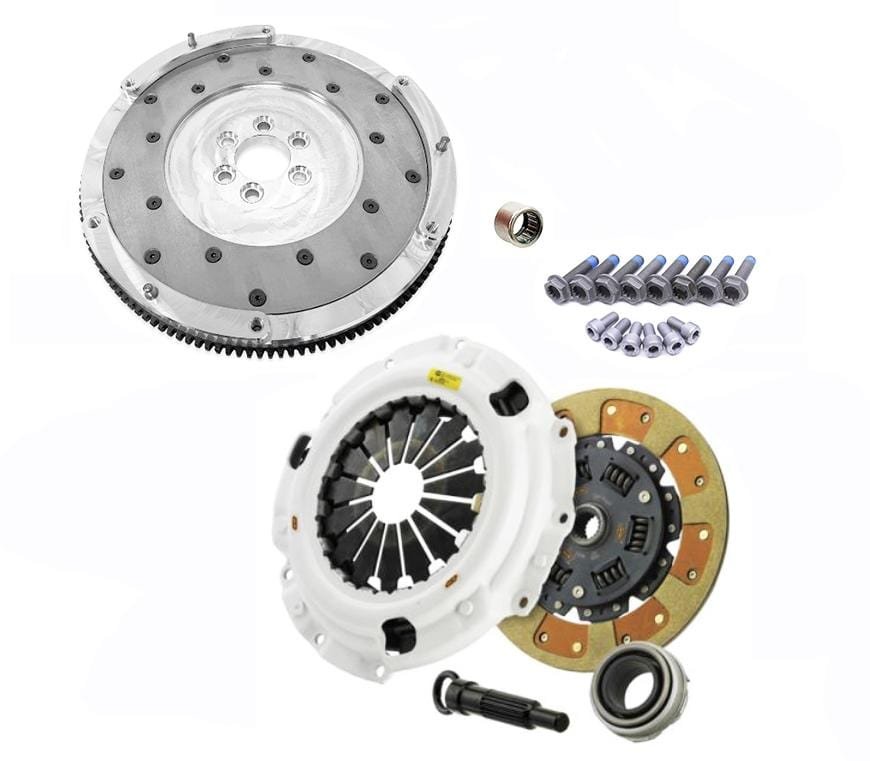

Kit Includes:
?
-?FX300 Clutch Kit with?Pilot Bearing. and Clutch?Alignment Tool (Clutch Masters)
– Lightweight Aluminum Flywheel with Bolts (034Motorsport)
– (6)?Pressure Plate Bolts M8x16?(Genuine)

Fits both 5 speed and 6 speed models.

Part #’s

Lightweight Aluminum Flywheel

034-503-1007

Flywheel Bolts

N90-665-001 / N90 665 001 / N90665001

Pressure Plate Bolts M8x16

N01-473-911 / N01 473 911 / N01473911

N01-473-91 / N01 473 91 / N0147391

N01-473-92 / N01 473 92 / N0147392

Pilot Bearing

056-105-313-C / 056105313 C / 056 105 313 C / 056105313C

FX300 Clutch Kit

02029-HDTZ
