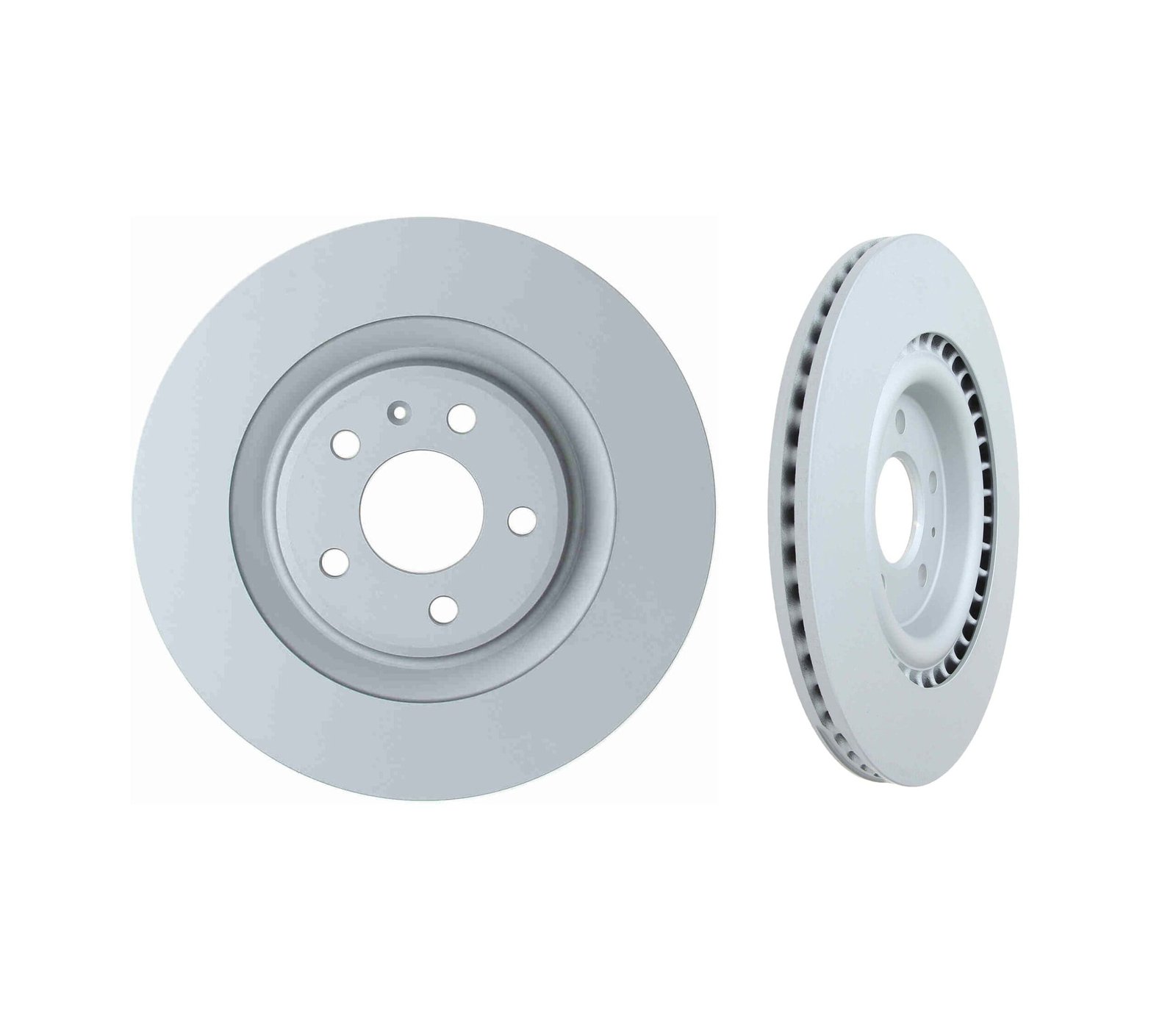

Rear Rotor Set (330x22mm) – Audi / B8 / S4 / S5 / C7 / A6 / A7 / SQ5 / D4 A8 / & More

Since 2008 Zimmermann is offering almost 400 Standard and almost 400 Sports Brake Discs in a coated version named Coat Z.

The Zimmermann Coat-Z brake disc provides a protective coating that prevents rust and corrosion. extended rotor life and improved visual appearance. To improve the rust protection during storage and usage. Otto Zimmermann GmbH implements this new Coat-Z technology step by step in its production range. Beside the still optimum function of the brake disc. this coating ensures a consistent attractive appearance.

Zimmermann brake discs are usually made of cast iron (with flake graphite) of different qualities; they correspond to the material used for the original spare parts. Therefore. the utilization of such materials (referred to as High Carbon by the competition) has always been a matter of course for Otto Zimmermann.

Features and Benefits:

• Coat-Z protective anti-corrosion coating
• No formation of rust at the hub and herewith improved visual appearance
• Immediate functional capability without removal of the coating before mounting
• Excellent deceleration action and no distortion of friction ring at high temperatures
• Substantial weight saving and therefore less unsprung mass
• Floating mounting enables radial expansion of the brake disc under relatively heavy loads. thus preventing shielding and increasing resistance to heat cracks
• Hot spots prevented by optimized design of ventilation channels
• 1:1 exchange of original disc possible
• Not subject to registration: general ABE certification supplied with disc
• No conversion required for brake tuning

RUN IN NOTICE – The following run-in notices are recommended to ensure a safe and proper operation of the brake disc / brake pad system:

• Violent or shock-braking should be avoided during the first 300 km of travel after the change of the brake discs.
• Through a moderate run-in. a gradual warming of the brake disc is performed without creating a heat shock and the friction surfaces of brake disc and brake pad are aligned to each other.
• Perform at least 30 brake applications from a medium velocity (approx. 100 km/h) with a moderate deceleration (maximum braking time 3 seconds) down to a velocity of initially 50 km/h. and after about half of the braking cycles were performed down to 25 km/h. Hereby letting the brake disc cool down for approx. 3 min. between the brake cycles through the motion airflow.

If these instructions are not complied with. Zimmermann shall not honor any warranty claims. if this non-compliance causes damage to the product or damages/harm to third parties. Furthermore. a warranty will also not be provided if damages and/or defects occur that are attributable to intensive use and/or individual driving behavior and/or were caused by non-intended use!

Zimmermann GmbH is a global leader in vehicle brake technologies and is an original equipment manufacturer of high quality brake discs and components. Zimmermann products are engineered to OE specifications and are inertia-dynamometer tested to guarantee superior quality.

OE Part #’s

4H0-615-601-H / 4H0615601 H / 4H0 615 601 H / 4H0615601H

4H0-615-601-Q / 4H0615601 Q / 4H0 615 601 Q / 4H0615601Q

4H0-615-601-K / 4H0615601 K / 4H0 615 601 K / 4H0615601K

4H0-615-601-D / 4H0615601 D / 4H0 615 601 D / 4H0615601D

8K0-615-601-C / 8K0615601 C / 8K0 615 601 C / 8K0615601C

8W0-615-601-K / 8W0615601 K / 8W0 615 601 K / 8W0615601K


Zimmermann Part #? 100335820?/?100 3358 20 /?100-3358-20 /?100.3358.20
