Coilover Installation Kit with 3-Bolt Front Strut Mounts – BMW / F2X / F3X

This Kit provides you with everything you need to professional install Shocks or Coilovers on to your BMW  F2X & F3X. It replaces all bushings connected to the shock system ensuring you return to that same ride feel when the car was driven off the lot.

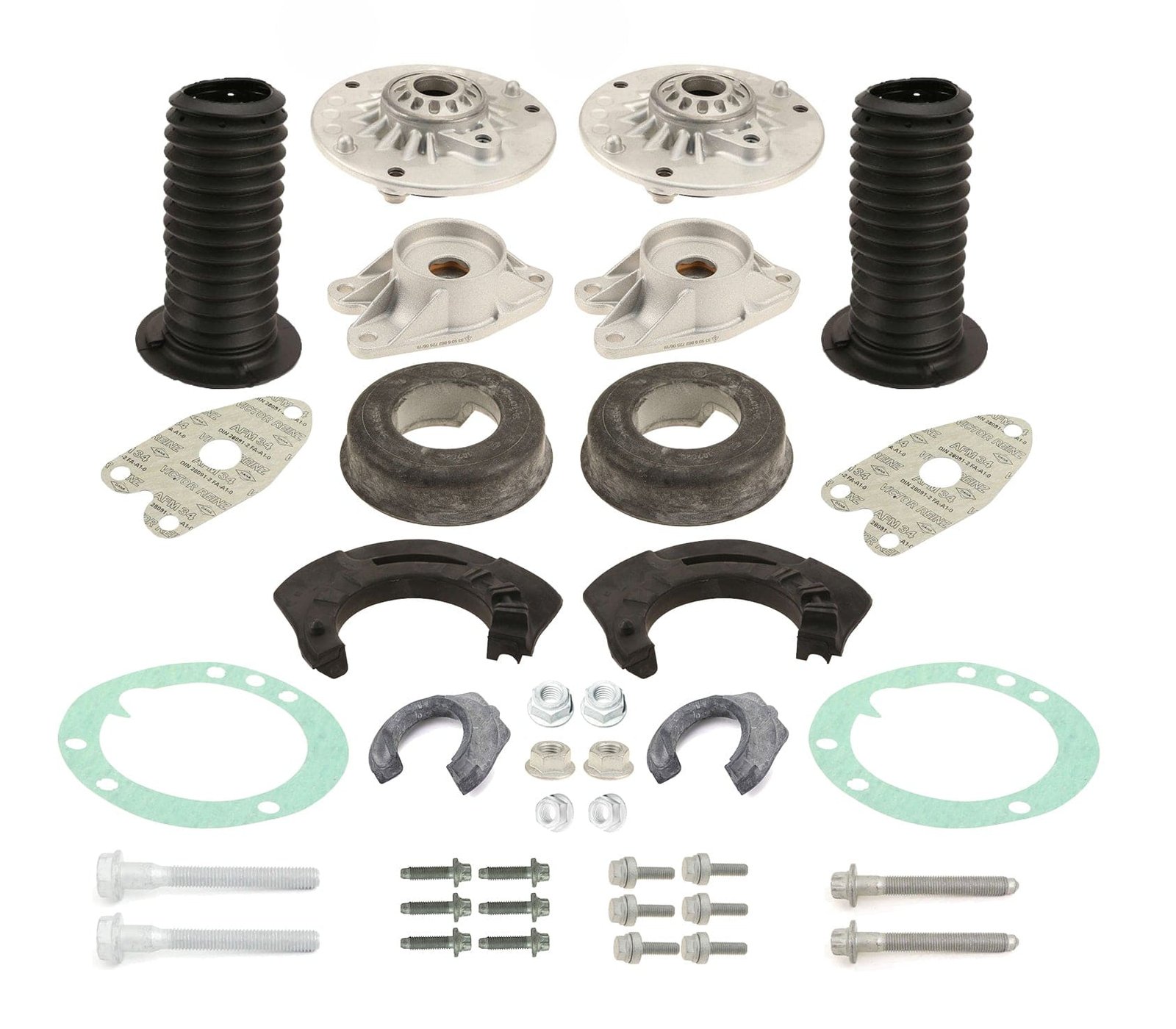

Kit Includes:

– (2) Hex Nuts (Steering Knuckle) – Genuine BMW
– (2) Upper Rear Spring Pads – Genuine BMW
– (2) Self-Locking Nuts (M12X1.5×10) – Genuine BMW
– (2) Front Lower Spring Pads – Genuine BMW
– (2) Strut Dust Sleeves – Febi
– (2) Strut Bolts – Genuine BMW
– (2) Rear Lower Shock Mounting Bolts – Genuine BMW
– (2) Hex Nut With Flange (M10X18Zns3) – Genuine BMW
– (6) Torx Screw With Collar (M8x25) – Genuine BMW
– (2) Lower Spring Pad (Rear)  – Genuine BMW
– (2) Shock Mount Gasket – Genuine BMW
– (6) Strut Mount Bolt (M8X30-10.9) – Genuine BMW
– (2) Strut Mount Washer Gasket – Elwis
– (2) Shock Mount Rear – Febi
– (2) Strut Mount Front – Lemforder

Part #’s

Hex Nuts (Steering Knuckle)

07-11-9-905-032 / 07 11 9 905 032 / 07119

Upper Rear Spring Pads

33-53-6-764-419 / 33 53 6 764 419 / 33536764419

Self-Locking Nuts (M12X1.5×10)

33-32-6-760-668 / 33 32 6 760 668 / 33326760668

31-12-1-093-267 / 31 12 1 093 267 / 31121093267

33-31-1-138-385 / 33 31 1 138 385 / 33311138385

33-32-0-141-440 / 33 32 0 141 440 / 33320141440

33-32-1-094-605 / 33 32 1 094 605 / 33321094605

33-32-6-751-446 / 33 32 6 751 446 / 33326751446

Front Lower Spring Pads

31-33-6-787-114 / 31 33 6 787 114 / 31336787114

Strut Dust Sleeves

31-30-6-791-712 / 31 30 6 791 712 / 31306791712

Strut Bolts

31-30-6-798-530 / 31 30 6 798 530 / 31306798530

Rear Lower Shock Mounting Bolts

07-11-9-907-372 / 07 11 9 907 372 / 07119907372

Hex Nut With Flange (M10X18Zns3)

07-11-9-907-135 / 07 11 9 907 135 / 07119907135

Torx Screw With Collar (M8x25)

07-11-9-907-137 / 07 11 9 907 137 / 07119907137

Lower Spring Pad (Rear)

33-53-6-791-709 / 33 53 6 791 709 / 33536791709

Shock Mount Gasket

33-50-6-866-038 / 33 50 6 866 038 / 33506866038

Strut Mount Bolt (M8X30-10.9)

31-30-6-869-931 / 31 30 6 869 931 / 31306869931

Strut Mount Washer Gasket

31-30-6-869-890 / 31 30 6 869 890 / 31306869890

Shock Mount Rear

33-50-6-862-725 / 33 50 6 862 725 / 33506862725

Strut Mount Front

31-30-6-880-438 / 31 30 6 880 438 / 31306880438
